The dBadge2 Noise Dosimeter mounts on the worker's shoulder, measuring the noise levels throughout the working day. It measures all the parameters needed by the occupational noise regulations throughout North America, Canada, Europe and the rest of the world. Everything is measured, so no risk of choosing the wrong parameters before starting the survey.
You can take the readings directly from the display. Everything you need to satisfy the regulations is there. For more detail it is usually better to download to a computer using the software that is included. The dosimeter even provides you with the calculated noise exposure level (TWA for North America and some other regions, LEP,d or LEX,8hr for Europe).
The dBadge2 Noise Dosimeter mounts on the worker's shoulder and measures the noise exposure throughout the day or working shift. The dosimeter is powered by a rechargeable battery, giving up to 35 hours between charges. The built-in microphone is protected by a windshield. All measurements are stored to the internal memory for download to a computer or to be transferred to a mobile phone or tablet via Bluetooth.
Strong Case - Designed for the industrial environment, the dosimeter case is made from impact resistant and absorbing plastics. The microphone is protected by the integrated windshield.
Color Display - The color display clearly shows the state (running, paused, etc) of the dBadge 2. Despite the small size of the dosimeter the display is very easy to read.
Mounting the Noise Dosimeter - The dBadge2 mounts on the worker's clothing, attached with simple but strong clips. The clips are connected to the dBadge body by short, flexible straps, so they do not restrict the worker's movement.
Download to PC - The docking station and charger connects to the computer's USB port for download. Once connected, the dBadge2 in the left-hand docking port is available for download.

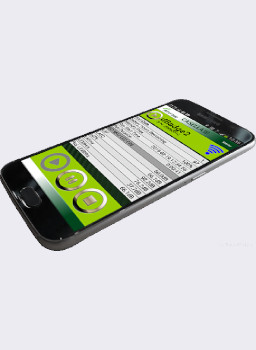

Mobile Phone or Tablet - The free Airwave application connects to the dBadge2 wirelessly using Bluetooth.
The Airwave app controls multiple dBadges without disturbing the workers.
Noise Measurement Integrity - As you are not with the noise dosimeter during the measurement process, you need ways of knowing whether the process was interfered with. Typical problems are:
Locking Keypad and Display - The keypad and display can be locked to prevent it from being switched off or its settings changed. With the display off the urge to make noise to see the numbers change is removed!
Motion Sensor and Time History - To ensure that the dBadge2 hasn't been taken off in an attempt to influence the results, it presents you with a motion index expressed as a percentage the time. The Time History Noise Profile (graph of sound level over time) is also useful. You can usually tell at a glance whether the noise levels through the day were as expected. The Time History includes a number of noise parameters (LAeq, LCpeak, LCeq, etc) along with a motion indicator.
The dBadge noise dosimeter continuously measures the sound levels throughout the working day and calculates the worker's noise exposure.
The dBadge2 also stores the Sound Level, Leq, Peak and Max values every second along with the motion index. Although not needed by the regulations, we consider this essential to allow you to check the noisy times of the day and also to check against tampering.
Occupational noise regulations around the world specify the standards that noise monitoring equipment should meet. It is essential that your sound level meter or noise dosimeter meets these standards.
The dBadge2 is designed to meet all the international regulations. For the most common regulations, such as those used in the North America and the EU, it has pre-programmed settings. To satisfy any other regulations parameters such as the Exchange Rate (3 or 5 dB), Threshold and Criterion Level can be changed. See the Specifications tab for more details of the settings available.
The dBadge2 effectively has three meters built in. This is very useful for certain USA regulations such as OSHA, were you need to measure with different Threshold settings to make the Personal Exposure Limit (PEL) and Hearing Conservation (HC) measurements. Or you can measure to ISO and OSHA at the same time.
The process for charging, monitoring and downloading measurements is the same for all versions of the dBadge2. The only difference is in the measurements obtained - the PLUS version has audio recording, the PRO version has audio recording and octave band filters.
The dBadge has a rechargeable battery that will run for up to 35 hours. The charge time is less than 6 hours from flat to fully charged. A charge of just over an hour is sufficient for 8 hours of measurements. Place the dBadge on the charger/dock and plug in to a power outlet.
Most regulations state that you should check the dosimeter's calibration before and after making measurements. A suitable Calibrator is included in the DB2Kx kits. Place the Calibrator firmly on to the microphone. When you switch the Calibrator on the dBadge should detect its presence and ask for confirmation.
The dBadge2 noise dosimeter is mounted on the worker's shoulder, close to the ear, monitoring the sound levels where it matters. Use the clips provided (already attached to the dosimeter) to clip it on to the worker's overalls or clothing.
Timers are available to automatically start and stop measurements. The most common way is to start the measurement manually after fitting the noise dosimeter to the worker.
Using the dBadge's Keys - The dBadge2 has just two buttons. To start a measurement manually, press and hold both buttons for three seconds. To prevent tampering the dBadge2 can be set to automatically lock to keypad when running. If auto-lock is not on then you can lock the keypad manually.
Starting using Bluetooth - You can also use the Airwave application on a phone or tablet to start the measurement. Simply select the dBadge you want to work with and hold the Play icon for three seconds. This gives the opportunity to start a measurement without getting too up-close to the worker!
It is recommended to leave the noise dosimeter on the worker for the full working shift. This way it can work out the noise exposure (TWA, LEP,d, LEX,8hr, etc.) for you. To stop the measurement, press and hold both keys for three seconds - similar to the starting process. Alternatively you can use the Airwave phone/tablet application to stop the measurement.
All the measurements that you need to satisfy the occupational noise regulations are available on the dBadge2 display, and also on the Airwave phone based application. Parameters such as Lavg, TWA, Leq, Peak and LEP,d can be noted down manually if you prefer not to use software.
Transferring the measurements to a computer gives the benefit of generating reports and long term storage. To download measurements from a dBadge2, connect the docking station to a computer and place the dosimeter in the left-hand position. You can use the Download Utility program (included with the DB2Kx kits) to download the measurements to an Excel style spreadsheet. If you have the optional Insight software then this can also be used to download the measurements.
There are three programs available for the dBadge2 Noise Dosimeter:
The dBadge2 Download Utility transfers the measurements from the dBadge into an Excel spreadsheet. If you want to produce your own reports then this is a quick way to do it.
The Airwave application runs on a phone or tablet and can be used to start and stop measurements. You can also view a summary of the measurement and send it by email.
The Insight software makes use of the full power of the dBadge2 dosimeter, downloading all the measurements, giving the option to link them with person, place or process, and producing reports.
The Download Utility software is available free of charge. It connects to a dBadge2 and downloads the measurements to an Excel spreadsheet file, from where you can carry our your own analysis and reporting. The file contains the measurement summary, along with the Time History Noise Profile, events, and a noise histogram.
The Airwave Application for phones and tablets is available for download free of charge from the Google Play and the Apple App Store. It handles multiple dBadge2 noise dosimeters over a Bluetooth link. Using the Airwave app you can start, stop and pause measurements without interrupting the worker. You can view the current measurement state too - noise levels so far, battery level and memory capacity. A summary report can be emailed directly from the phone or tablet.
The Insight software can be bought with the kit or at a later date. It runs in Windows XP, Vista, 7, 8, 8.1 and 10, and deals with downloading the measurements, managing the data, linking measurements with people, processes, locations, etc. and generates reports.
Reports can be created using either single or multiple measurements. You select the entity for which you want to generate a report - this can be a person, place or process and then select the option to Generate report...
The Report Wizard then leads you through the process, allowing you to select the sorting (site, location, process or person), making it very convenient to generate reports for all people, all processes, etc. You can then select a date range and even include/exclude selected measurements, and which fields you want included - date, time, duration, battery state, notes, and so on.
A personal header and footer can be added. All changes to the layout and content are saved so that you don't have to go through the same selections again.
Once generated, the report can be viewed on screen, printed or exported to other formats such as Excel (XLS) or PDF (ideal for emailing).
The dBadge 2 noise dosimeter has ATEX and IECEx approval for use in hazardous and potentially explosive atmospheres. This I.S. design and approval make it ideal for use in the oil, petrochemical, pharmaceutical and mining industries.
These approvals apply to the Intrinsically Safe version for the dBadge noise dosimeter. These are identified by the letters "IS" in the order code, as described in the Order Codes section on this page.
With regard to noise measurement functionality, the Intrinsically Safe version of dBadge 2 is identical to the standard version. It measures all the same acoustic parameters, displays the same information and has the same data storage. It is completely compatible with the standard version, so you can have a mix of I.S. approved and standard versions, keeping the I.S. ones for use in the areas with a hazardous atmosphere.
The order codes for the Intrinsically Safe version of the dBadge all contain the letters "IS". They are shown in the ordering and pricing boxes at the top and bottom of this page.
The kit codes are DB2ISKx, where x indicates the number of intrinsically safe dosimeters that are included.
Only the noise dosimeter and its direct attachments (mounting devices) are approved for use in potentially explosive atmospheres.
None of the additional items such Charger or Calibrator are approved, so all tasks such as charging and calibrating the dBadge should be done outside the hazardous area.
For occupational noise and hearing protection applications, it is essential that the dosimeter you use meets the correct standards. The dosimeter standards are based on the sound level meter standards ANSI S1.4 and IEC61672, but are specific to this particular application. The relevant standards are:
The dBadge2 meets and exceeds these standards. It is suitable for occupational noise assessments in line with the USA and Canadian regulations, European regulations, UK HSE guidelines, Australian, New Zealand and any other regulations we are aware of.
As many parameters are configurable, the dBadge2 should be able to satisfy any regulations. If you are unsure then please contact us and we will check it out for you.
|Standards||ANSI S1.25:1991 R2007, IEC 61252 Ed 1.1 (2002-3)|
|Linear Operating Range||55 to 140.3 dB(A) RMS|
|Peak Measurement Range||90 to 143.3 dB (C or Z weighted)|
|Sound Exposure Range||0.0- 6,100.0 Pa²Hours|
|0.00 – 22,000,000.00 Pa²Sec|
|Frequency Weightings||A, C and Z|
|Time Weightings||Fast, Slow and Impulse|
|Exchange Rate||Q=3 or Q=5|
|Threshold||70 to 90 dB in 1 dB steps (set using Insight software)|
|Criterion Level||70 to 90 dB in 1 dB steps (set using Insight software)|
|Stabilization Time||<3 seconds after power up|
All measurements are stored. The selection of parameters to display does not restrict the storage.
|Measurement Summary||Lavg, LAeq, LCeq|
|TWA (8hr), Projected TWA (8hr)|
|Dose%, Projected Dose %|
|LApk + Time, LCpk + Time, LZpk + Time|
|LAS exceedance time|
|LC-LA (for HML calculations)|
|LCpk >135 (count), LCpk > 137 (count), LCpk > 140 (count)|
|LAFmax + time, LAFmin + time|
|LASmax + time, LASmin + time|
|LAImax + time, LAImin + time|
|Cumulative motion index (% of time motion detected)|
|Time History Profile||Each parameter stored every second|
|Lavg (Q=5, T=0), Lavg (Q=3, T=0)|
|Motion Index (0 or 1)|
|Maximum Run Duration||24 hours|
|Maximum number of Runs||100|
|Storage Capacity||Internal USD Flash memory - 300 hours of run data (including 1 second profile data)|
|Operating Temperature Range||0°C to +40°C (for <±0.5dB error limit)|
|-10°C to +50°C (for <±0.8dB error limit)|
|Ambient Pressure Range||<±0.5dB over 85 - 112kPa|
|Humidity range||<± 0.5dB over 30% - 90% (non-condensing)|
|I.P. Rating||IP65 (with permeable air vent)|
|Dimensions||85L x 54W x 55H mm|
|Construction Materials||Plastic Case/ Charger - PC/ABS|
|Mounting Clips - POM|
|Gasket - Silicone|
|Display window - Acrylic|
|Foam Windscreen - Polyester foam|
|Microphone - Brass / Nickel|
